Rodent protection GYTA33 Outdoor Fiber Optic Cable 36 48 60 Core Lake Crossing for Undertwater

Name: Rodent protection GYTA33 Outdoor Fiber Optic Cable 36 48 60 Core Lake Crossing for Undertwater
Brand: EBOCOM
Price: 1 USD

China Rodent protection GYTA33 Outdoor Fiber Optic Cable 36 48 60 Core Lake Crossing for Undertwater wholesale

Brand Name : EBOCOM

Model Number : GYTA33

Certification : ISO

Place of Origin : Shandong，China

MOQ : 2000M

Price : EXW ≥2000m $0.74/M ≥5000m $0.71/M

Payment Terms : T/T

Supply Ability : 5000KMS/day

Delivery Time : 5-8 days

Packaging Details : 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Fiber Count : Outer Diameter

Weight

: Allowable Tensile Strength (N)

Allowable Crush Load (N/100mm) : Bending Radius(mm)

（core） : (mm)

(kg/km) : Short Term

Long Term : Dynamic

Static : 2~30

15.0 : 424

10000 : 4000

5000 : 3000

25D : 12.5D

32~60 : 16.3

483 : 10000

4000 : 5000

3000 : 25D

12.5D : 62~72

17.5 : 558

Contact Now

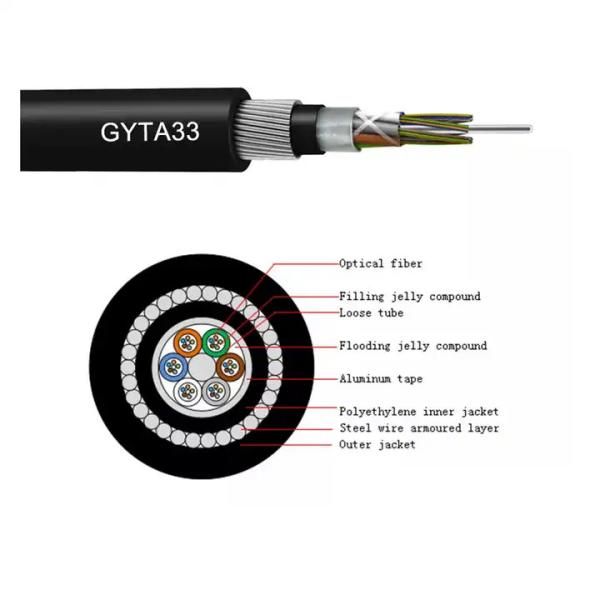

GYTA33 optical cable is made by inserting SM/MM optical fiber into a loose tube, and the tube is filled with waterproof compound. The center of the cable core is a metal reinforcing core. A layer of polyethylene is extruded outside the reinforcing core. The loose tube is twisted around the central reinforcing core to form a compact circular cable core. The gaps in the cable core are filled with water-blocking fillers. . After being wrapped longitudinally with plastic-coated aluminum tape (APL), a layer of polyethylene inner sheath is extruded, and then armored with single or double layers of fine round steel wire, and finally the polyethylene outer sheath is extruded to form a cable.

Rodent protection GYTA33 Outdoor Fiber Optic Cable 36 48 60 Core Lake Crossing for Undertwater

Applications:

River and lake crossing, coastal ,direct buried, rodent protection

Fiber count(core)	Loose tube diameter(mm)	Nominal Thickness of outer jacket (mm)	Cable diameter Height (mm)	Cable weight (kg/km)
12	1.9±0.1	1.6	12.0±0.2	145
36	1.9±0.1	1.6	13.2±0.2	155
48	1.9±0.1	1.6	13.2±0.2	155

Characteristics:

Suitable for waterfront scenes
The loose tube is filled with special grease to provide critical protection for the optical fiber.
The central reinforced component of phosphated steel wire has high modulus and corrosion resistance.
Longitudinal wrapping of double-sided coated corrugated steel strips and thin round steel wire wrapping and armoring ensures the mechanical compression, tensile and ballistic properties of the optical cable, and meets application requirements such as hill climbing, direct burial, and underwater laying.
