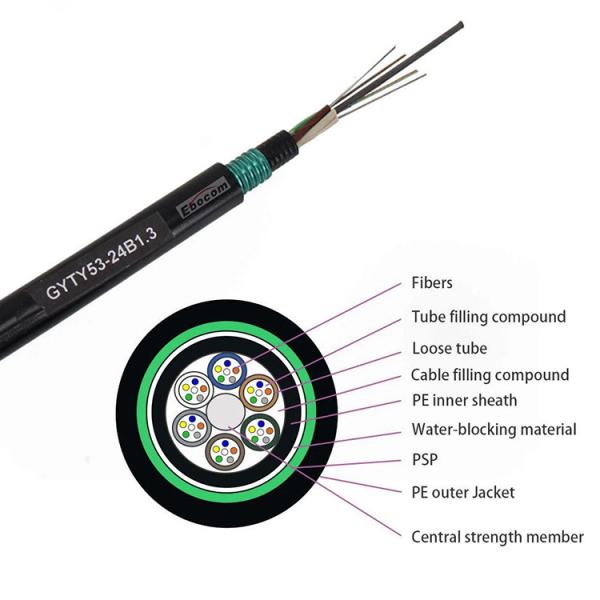

Optical cables can do up to 288 fibers.
The filling compound filled in the loose tube can better protect the fiber.
Aluminum tape armor protects the cable from mechanical damage and has a stronger breaking force.
UV protection and waterproof design.
Data communication network cabling between buildings.
It is suitable for aerial use and can also be used as a pipeline cable.
| Cable Type |
Cable Diameter
(mm) |
Cable Weight
(kg/km) |
Tensile
Strength
Long/
Short Term
(N) |
Crush
Resistance
Long/
Short Term
(N/100mm) |
Bending
Radius
Static/
Dynamic
(mm) |
| GYTA-2~6 |
9.7 |
90 |
600/1500 |
300/1000 |
10D/20D |
| GYTA-8~12 |
9.7 |
90 |
600/1500 |
300/1000 |
10D/20D |
| GYTA-14~18 |
9.7 |
90 |
600/1500 |
300/1000 |
10D/20D |
| GYTA-20~24 |
9.7 |
90 |
600/1500 |
300/1000 |
10D/20D |
| GYTA-26~30 |
9.7 |
90 |
600/1500 |
300/1000 |
10D/20D |
| GYTA-32~36 |
10.2 |
104 |
1000/3000 |
300/1000 |
10D/20D |
| GYTA-38~48 |
11.0 |
117 |
1000/3000 |
300/1000 |
10D/20D |
| GYTA-50~60 |
11.0 |
117 |
1000/3000 |
300/1000 |
10D/20D |
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
