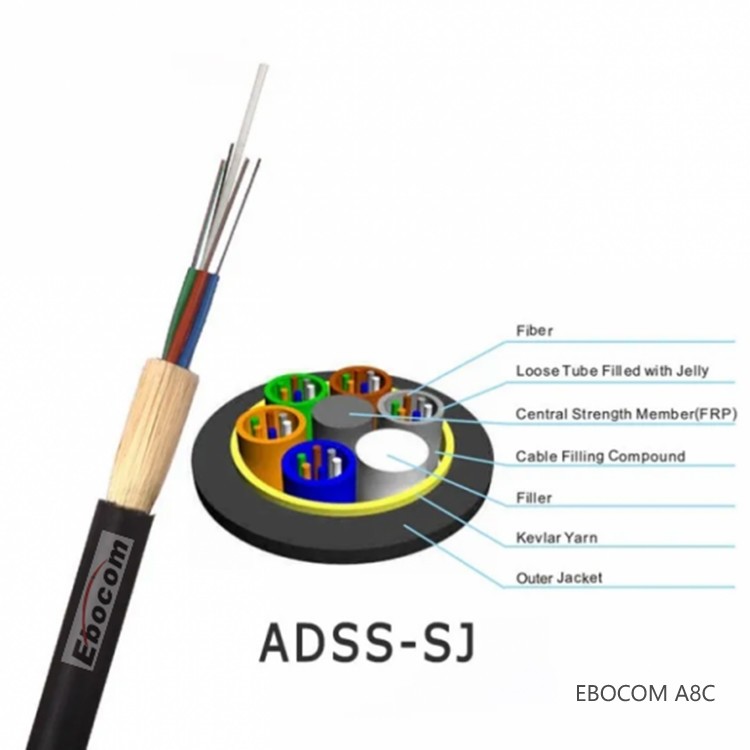

High quality ADSS fiber cable 2-96 Core All Dielectric Mini Multicore G652D span 100 200 300 yarn Aramid yarn strength

Name: High quality ADSS fiber cable 296 Core All Dielectric Mini Multicore G652D span 100 200 300 yarn Aramid yarn strength
Brand: EBOCOM
Price: 1 USD

China High quality ADSS fiber cable 2-96 Core All Dielectric Mini Multicore G652D span 100 200 300 yarn Aramid yarn strength wholesale

Certification : ISO

Brand Name : EBOCOM

Model Number : ADSS -96B1.3

Place of Origin : Shandong，China

MOQ : 2000M

Price : EXW ≥2000m $0.88/M ≥5000m $0.85/M

Payment Terms : T/T

Supply Ability : 50000KMS/day

Packaging Details : 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Model NO. : ADSS

Core : Multicore

Brand : OEM

Sheath Material : HDPE

Transport Package : Wooden Reel

Trademark : OEM

Origin : China

Contact Now

Main applications:

It is mainly used in areas with high electric field strength in power communication transmission systems, or areas with frequent lightning strikes.

Features:

Low attenuation, low dispersion reasonable design and accurate residual length control make the cable have excellent performance
Mechanical and environmental performance.
3.the non-metallic structure makes the cable have good electromagnetic interference resistance.
4.the use of high-strength aramid wire as a reinforcement, to ensure that the cable tensile strength is high, small wire diameter, light weight, to adapt to different climatic conditions and different installation span.
5.special AT outer sheath (optional), with good electrical corrosion resistance

Technical Parameter:

Designation	Diameter (mm)	RTS(N)	MAT(N)	EDS(N)	Kg/km
2~24 core
ADSS-AT(PE)xx -4KN	12.2	9698	3879	2425	121
ADSS-AT(PE)xx -6KN	12.5	14108	5643	3527	126
ADSS-AT(PE)xx -9KN	12.9	22928	9171	5732	135
ADSS-AT(PE)xx -12KN	13.3	30645	12258	7661	143
ADSS-AT(PE)xx -15KN	13.6	37260	14904	9315	149
ADSS-AT(PE)xx -18KN	13.9	44978	17996	11245	157
ADSS-AT(PE)xx -21KN	14.3	52695	21078	13174	164
ADSS-AT(PE)xx -24KN	14.6	60413	24165	15103	172
ADSS-AT(PE)xx -26KN	14.8	65925	26370	16481	177
26~36 core
ADSS-AT(PE)xx -4KN	12.8	9698	3879	2425	133
ADSS-AT(PE)xx -6KN	13.0	14108	5643	3527	138
ADSS-AT(PE)xx -9KN	13.4	22928	9171	5732	146
ADSS-AT(PE)xx -12KN	13.8	30645	12258	7661	154
ADSS-AT(PE)xx -15KN	14.1	37260	14904	9315	161
ADSS-AT(PE)xx -18KN	14.4	44978	17991	11245	168
ADSS-AT(PE)xx -21KN	14.7	52695	21078	13174	175
ADSS-AT(PE)xx -24KN	15.1	60413	24165	15103	183
ADSS-AT(PE)xx -26KN	15.3	65925	26370	16481	188
