Photoelectric Composite Hybrid Optical Fiber Cable GYXTW RVV Armoured 12 Cores with Power Cable

Name: Photoelectric Composite Hybrid Optical Fiber Cable GYXTW RVV Armoured 12 Cores with Power Cable
Brand: Ebocom
Price: 0.1 USD

China Photoelectric Composite Hybrid Optical Fiber Cable GYXTW RVV Armoured 12 Cores with Power Cable wholesale

Brand Name : Ebocom

Model Number : OPLC

Certification : ISO

Place of Origin : China

MOQ : 2000M

Price : USD 0.1~0.5, Meter

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100 KM per Day

Delivery Time : 10-15 days

Packaging Details : Plywood Drum

Conductor Material : Copper

Oem : Available

Out Color : black

Model Numer : OPLC

Applicable : Long-distance communication, LAN

Armor : Aluminum clad steel

Out Sheath : PE

Fiber : G652D, G657A1, G657A2

Contact Now

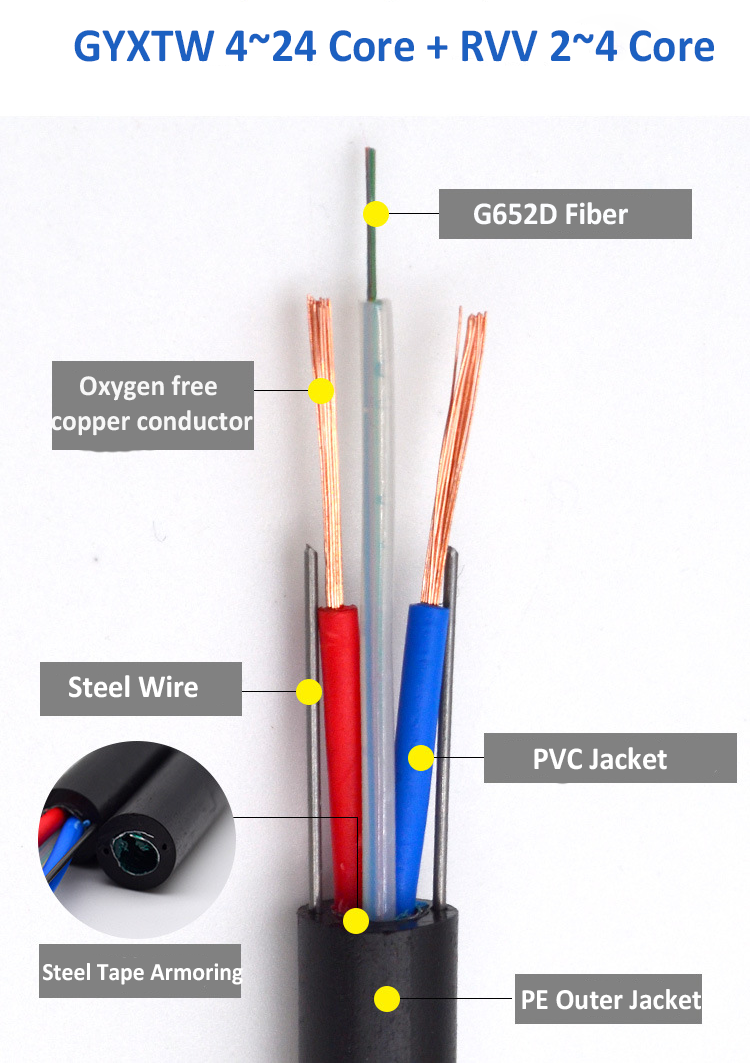

The GYXTW Photoelectric Composite Hybrid Optical Fiber Cable combines optical fibers for high-speed data transmission and power cables for electricity supply, offering an efficient "two-in-one" solution. Designed for outdoor and industrial applications, this cable is ideal for environments where both data and power are required. Its central loose tube structure provides excellent mechanical strength, while the armoured design ensures durability and protection from external damage. The cable supports various power conductor sizes (0.5mm², 1.0mm², 1.5mm², 2.0mm²), making it suitable for different power requirements.

Photoelectric Composite Hybrid Optical Fiber Cable GYXTW RVV Armoured 12 Cores with Power Cable

Applications

Power and data transmission for remote monitoring systems
Security and surveillance systems (CCTV)
Outdoor communication networks and smart grids
Industrial automation and IoT applications

Features

High-performance optical fiber: Available in single-mode or multi-mode fibers for fast, stable transmission
Power cable integration: Multiple conductor sizes to meet different power demands
Excellent mechanical strength: Central loose tube structure with steel or aluminum tape armouring for enhanced protection

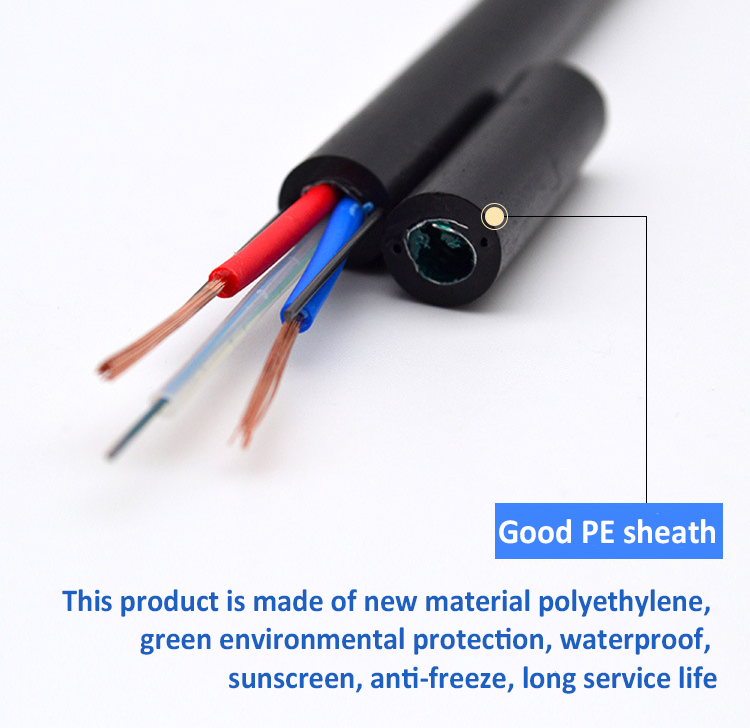

Weather-resistant: Suitable for outdoor use, with UV and moisture-resistant outer sheath
Customizable configuration: Optical cores (2~24 fibers) and power conductor sizes (0.5mm² to 2.0mm²)

Technical Specifications

Item	Description
Optical Fiber Type	Single-mode G652D, G657A1, or Multi-mode OM1/OM2/OM3
Fiber Core Count	2~24 cores
Power Cable Sizes	0.5mm², 1.0mm², 1.5mm², 2.0mm²
Structure	Central loose tube, steel tape (GYXTW), aluminum tape (optional)
Armouring Material	Steel tape or aluminum tape
Sheath Material	PE (UV-resistant), optional LSZH
Operating Temperature	-40°C to +70°C
Tensile Strength	≥1500N
Crush Resistance	≥1000N/100mm
Cable Outer Diameter	Depends on fiber count and power cable size
Sheath Color	Black (standard), other colors available on request

Advantages

Integrated Design: Reduces installation cost and complexity by combining power and fiber in a single cable.
Wide Range of Applications: Perfect for outdoor installations, surveillance systems, and industrial control.
Durability: Armoured structure provides excellent protection in harsh environments.
Customizable: Available in various configurations to meet specific project requirements.
